ISWB臥式管道油泵
ISWB型臥式離心油泵供輸送汽油、煤油、柴油等油類產品或易燃、易爆液體,被輸送介質溫度為-20~ +120℃。
下一個產品:YG型不銹鋼防爆管道油泵
上一個產品:沒有了
ISWB臥式管道油泵產品概述
臥式離心油根據ISW型離心泵之性能參數和油泵的獨特結構組合設計,并嚴格按照國際iso2858進行設計制造,該產品配備防爆電機,軸封選用硬質合金機械密封裝置,具有使用安全、性能穩定等特點。

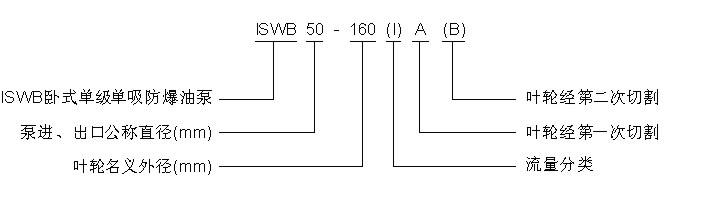

ISWB臥式管道油泵型號意義
ISWB臥式管道油泵主要特點
運行平穩:泵軸的絕對同心度及葉輪優異的動靜平衡,保證平穩運行,絕無振動。
滴水不漏:不同材質的硬質合金密封,保證了不同介質輸送均無泄漏。
噪音低:兩個低噪音的軸承支撐下的水泵,運轉平穩,除電機微弱聲響,基本無噪音。
故障率低:結構簡單合理,關鍵部分采用國際一流品質配套,整機無故障工作時間大大提高。
維修方便:更換密封、軸承、簡易方便。
ISWB臥式管道油泵主要用途
1、ISW臥式離心泵供輸送清水及物理化學性質類似于清水的其它液體之用,適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套,使用溫度t≤80℃。2、熱水離心泵廣泛適用于:冶金、化工、紡織、造紙以及賓館飯店等鍋爐熱水增壓循環輸送及城市采暖系統,iswr型使用溫度t≤120℃。
3、化工離心泵供輸送不含固體顆粒,具有腐蝕性、粘度類似于水的液體,適用于石油、化工、電力、造紙、食品制藥和合成纖維等部門,使用溫度為-20℃~+120℃。
4、離心油泵供輸送汽油、煤油、柴油等油類產品或易燃、易爆液體,被輸送介質溫度為-20~ +120℃。

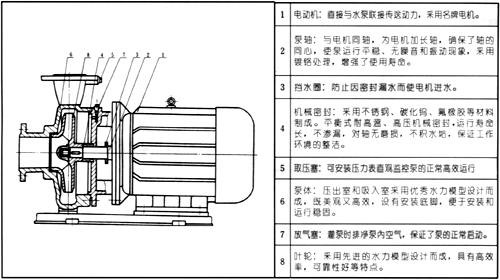

ISWB臥式管道油泵結構簡圖
ISWB臥式管道油泵性能參數表
型號 | 流量 |
揚程 m |
效率 % |
轉速 r/min |
電機 功率 kw |
汽蝕 余量 m |
重量 kg |
|
m3/h | l/s | |||||||
ISWB15-80 |
1.1 1.5 2.0 |
0.3 0.42 0.55 |
8.5 8 7 |
26 34 34 |
2900 | 0.18 | 2.3 | 17 |
ISWB20-110 |
1.8 2.5 3.3 |
0.50 0.69 0.91 |
16 15 13.5 |
25 34 35 |
2900 | 0.37 | 2.3 | 25 |
ISWB20-160 |
1.8 2.5 3.3 |
0.50 0.69 0.91 |
33 32 30 |
19 25 23 |
2900 | 0.75 | 2.3 | 29 |
ISWB25-110 |
2.8 4.0 5.2 |
0.78 1.11 1.44 |
16 15 13.5 |
34 42 41 |
2900 | 0.55 | 2.3 | 26 |
ISWB25-125 |
2.8 4.0 5.2 |
0.78 1.11 1.44 |
20.6 20 18 |
28 36 35 |
2900 | 0.75 | 2.3 | 28 |
ISWB25-125A |
2.5 3.6 4.6 |
0.69 1.0 1.28 |
17 16 14.4 |
35 35 35 |
2900 | 0.55 | 2.3 | 27 |
ISWB25-160 |
2.8 4.0 5.2 |
0.78 1.11 1.44 |
33 32 30 |
24 32 33 |
2900 | 1.5 | 2.3 | 39 |
ISWB25-160A |
2.6 3.7 4.9 |
0.12 1.03 1.36 |
29 28 26 |
31 31 31 |
2900 | 1.1 | 2.3 | 34 |
ISWB32-100I |
4.4 6.3 8.3 |
1.22 1.75 2.32 |
13.2 12.5 11.3 |
48 54 53 |
2900 | 0.75 | 2.0 | 32 |
ISWB32-125 |
3.5 5.0 6.5 |
0.97 1.39 1.8 |
22 20 18 |
40 44 42 |
2900 | 0.75 | 2.3 | 28 |
ISWB32-125A |
3.1 4.5 5.8 |
0.86 1.25 1.61 |
17.6 16 14.4 |
43 43 43 |
2900 | 0.55 | 2.3 | 28 |
ISWB32-160 |
3.1 4.5 5.8 |
0.86 1.25 1.61 |
33 32 30 |
34 40 42 |
2900 | 1.5 | 2.3 | 28 |
ISWB32-160I |
4.4 6.3 8.3 |
1.22 1.75 2.32 |
33.2 32 30.2 |
34 40 42 |
2900 | 2.2 | 2.0 | 47 |
ISWB32-200 |
3.1 4.5 5.8 |
0.86 1.25 1.61 |
51 50 48 |
28 35 37 |
2900 | 3 | 2.0 | 47 |
ISWB32-200I |
4.4 6.3 8.3 |
1.22 1.75 2.32 |
50.5 50 48 |
26 33 35 |
2900 | 4 | 2.0 | 43 |
ISWB32-200IA |
2.8 4.0 5.2 |
0.78 1.11 1.44 |
44.6 44 42.7 |
34 40 42 |
2900 | 2.2 | 2.0 | 74 |
ISWB40-100 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
13.2 12.5 11.3 |
48 54 53 |
2900 | 0.55 | 2.3 | 32 |
ISWB40-100A |
3.9 5.6 7.4 |
1.08 1.56 2.06 |
10.6 10 9 |
52 52 52 |
2900 | 0.37 | 2.3 | 32 |
ISWB40-125 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
21 20 18 |
41 46 43 |
2900 | 1.1 | 2.3 | 34 |
ISWB40-125A |
3.9 5.6 7.4 |
1.08 1.56 2.06 |
17.6 16 14.4 |
40 45 41 |
2900 | 0.75 | 2.3 | 33 |
ISWB40-160 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
33 32 30 |
35 40 40 |
2900 | 2.2 | 2.3 | 47 |
ISWB40-160A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
29 28 26.3 |
34 39 39 |
2900 | 1.5 | 2.3 | 43 |
ISWB40-160B |
3.8 5.5 7.2 |
1.06 1.53 2.0 |
25.5 24 22.5 |
34 38 37 |
2900 | 1.1 | 2.3 | 38 |
ISWB40-200 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
51 50 48 |
26 33 32 |
2900 | 4 | 2.3 | 74 |
ISWB40-200A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
45 44 42 |
26 31 30 |
2900 | 3 | 2.3 | 62 |
ISWB40-200B |
3.7 5.3 7.0 |
1.03 1.47 1.94 |
38 36 34.5 |
29 29 29 |
2900 | 2.2 | 2.3 | 52 |
ISWB40-250 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
82 80 74 |
24 28 28 |
2900 | 7.5 | 2.3 | 105 |
ISWB40-250A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
72 70 65 |
24 28 27 |
2900 | 5.5 | 2.3 | 98 |
ISWB40-250B |
3.8 5.5 7.0 |
1.06 1.53 1.94 |
61.5 60 56 |
23 27 26 |
2900 | 4 | 2.3 | 77 |
ISWB40-100I |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.2 12.5 11.3 |
55 62 60 | 2900 | 1.1 | 2.3 | 34 |
ISWB40-100IA |
8 11 14.5 |
2.22 3.05 4.03 |
10.6 10 9 |
60 60 60 |
2900 | 0.75 | 2.3 | 32 |
ISWB40-125I |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.2 20 17.8 |
49 58 57 |
2900 | 1.5 | 2.3 | 38 |
ISWB40-125IA |
8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 57 57 |
2900 | 1.1 | 2.3 | 33 |
ISWB40-160I |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3 | 2.3 | 56 |
ISWB40-160IA |
8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 | 2.3 | 47 |
ISWB40-160IB |
7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
50 50 50 |
2900 | 1.5 | 2.3 | 43 |
ISWB40-200I |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
51.2 50 48 |
38 46 46 |
2900 | 5.5 | 2.3 | 85 |
ISWB40-200IA |
8.3 11.7 15.3 |
2.31 3.25 4.25 |
45 44 42 |
37 45 45 |
2900 | 4 | 2.3 | 75 |
ISWB40-200IB |
7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
44 44 44 |
2900 | 3 | 2.3 | 63 |
ISWB40-250I |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
81.2 80 77.5 |
31 38 40 |
2900 | 11 | 2.3 | 145 |
ISWB40-250IA |
8.2 11.6 15.2 |
2.28 3.22 4.22 |
71 70 68 |
38 38 38 |
2900 | 7.5 | 2.3 | 95 |
ISWB40-250IB |
7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
37 37 37 |
2900 | 7.5 | 2.3 | 94 |
ISWB40-250IC |
7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 50.4 |
36 36 36 |
2900 | 5.5 | 2.3 | 88 |
ISWB50-100 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.6 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.3 | 36 |
ISWB50-100A |
8 11 14.5 |
2.22 3.05 4.03 |
11 10 9 |
60 60 60 |
2900 | 0.75 | 2.3 | 35 |
ISWB50-125 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 17.8 |
49 58 57 |
2900 | 1.5 | 2.3 | 43 |
ISWB50-125A |
8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 57 57 |
2900 | 1.1 | 2.3 | 38 |
ISWB50-160 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3 | 2.3 | 59 |
ISWB50-160A |
8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 | 2.3 | 51 |
ISWB50-160B |
7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
50 50 50 |
2900 | 1.5 | 2.3 | 47 |
ISWB50-200 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
52 50 48 |
38 46 46 |
2900 | 5.5 | 2.3 | 101 |
ISWB50-200A |
8.3 11.7 15.3 |
2.31 3.25 4.25 |
45.8 44 42 |
37 45 45 |
2900 | 4 | 2.3 | 80 |
ISWB50-200B |
7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
44 44 44 |
2900 | 3 | 2.3 | 68 |
ISWB50-250 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
82 80 77.5 |
29 38 40 |
2900 | 11 | 2.3 | 160 |
ISWB50-250A |
8.2 11.6 15.2 |
2.28 3.22 4.22 |
71.5 70 68 |
38 38 38 |
2900 | 7.5 | 2.3 | 115 |
ISWB50-250B |
7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
37 37 37 |
2900 | 7.5 | 2.3 | 114 |
ISWB50-250C |
7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 50.4 |
36 36 36 |
2900 | 5.5 | 2.3 | 108 |
ISWB50-100I |
17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 | 2.5 | 41 |
ISWB50-100IA |
15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 | 2.5 | 36 |
ISWB50-125I |
17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 | 3 | 2.5 | 56 |
ISWB50-125IA |
15.6 22.3 29 |
4.33 6.19 8.1 |
17 16 13.6 |
58 66 65 |
2900 | 2.2 | 2.5 | 48 |
ISWB50-160I |
17.5 25 32.5 |
4.68 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 | 4 | 2.5 | 72 |
ISWB50-160IA |
16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 | 4 | 2.5 | 71 |
ISWB50-160IB |
15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
58 58 58 |
2900 | 3 | 2.5 | 59 |
ISWB50-200I |
17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 | 2.5 | 108 |
ISWB50-200IA |
16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 7.5 | 2.5 | 107 |
ISWB50-200IB |
15.2 21.8 28.3 |
4.22 6.06 7.86 |
40 38 34.5 |
55 55 55 |
2900 | 5.5 | 2.5 | 100 |
ISWB50-250I |
17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15 | 2.5 | 175 |
ISWB50-250IA |
16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 | 11 | 2.5 | 165 |
ISWB50-250IB |
15 21.6 28 |
4.17 6.0 7.78 |
61 60 57.4 |
38 49 54 |
2900 | 11 | 2.5 | 165 |
ISWB50-315I |
17.5 25 32.5 |
4.86 6.94 9.03 |
128 125 122 |
30 40 44 |
2900 | 30 | 2.5 | 310 |
ISWB50-315IA |
16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
30 40 44 |
2900 | 22 | 2.5 | 245 |
ISWB50-315IB |
15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 39 39 |
2900 | 18.5 | 2.5 | 215 |
ISWB50-315IC |
14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 38 38 |
2900 | 15 | 2.5 | 195 |
ISWB65-100 |
17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 | 2.5 | 46 |
ISWB65-100A |
15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 | 2.5 | 41 |
ISWB65-125 |
17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 | 3 | 2.5 | 58 |
ISWB65-125A |
15.6 22.3 29 |
4.33 6.19 8.1 |
17 16 14.4 |
58 66 65 |
2900 | 2.2 | 2.5 | 49 |
ISWB65-160 |
17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 | 4 | 2.5 | 75 |
ISWB65-160A |
16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 | 4 | 2.5 | 75 |
ISWB65-160B |
15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
2900 | 3 | 2.5 | 63 | |
ISWB65-200 |
17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 | 2.5 | 107 |
ISWB65-200A |
16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 7.5 | 2.5 | 107 |
ISWB65-200B |
15.2 21.8 28.3 |
4.22 6.06 7.86 |
40 38 34.5 |
55 55 55 |
2900 | 5.5 | 2.5 | 100 |
ISWB65-250 |
17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15 | 2.5 | 180 |
ISWB65-250A |
16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 | 11 | 2.5 | 170 |
ISWB65-250B |
15 21.6 28 |
4.17 6.0 7.78 |
61 60 57.4 |
38 49 54 |
2900 | 11 | 2.5 | 170 |
ISWB65-315 |
17.5 25 32.5 |
4.86 6.94 9.03 |
127 125 122 |
32 40 44 |
2900 | 30 | 2.5 | 320 |
ISWB65-315A |
16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
32 40 44 |
2900 | 22 | 2.5 | 255 |
ISWB65-315B |
15.7 22.5 29.2 |
103 101 98 |
39 39 39 |
2900 | 18.5 | 2.5 | 225 | |
ISWB65-315C |
14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 38 38 |
2900 | 15 | 2.5 | 205 |
ISWB65-100I |
35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3 | 3.0 | 63 |
ISWB65-100IA |
31.3 44.7 58 |
8.7 12.4 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 | 3.0 | 53 |
ISWB65-125I |
35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.0 | 99 |
ISWB65-125IA |
31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 | 4 | 3.0 | 78 |
ISWB65-160I |
35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 | 3.0 | 103 |
ISWB65-160IA |
32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 24 |
62 70 69 |
2900 | 7.5 | 3.0 | 103 |
ISWB65-160IB |
30.3 43.3 56.3 |
8.4 12.0 15.6 |
26 24 21 |
69 69 69 |
2900 | 5.5 | 3.0 | 97 |
ISWB65-200I |
35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 | 15 | 3.0 | 176 |
ISWB65-200IA |
32.8 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11 | 3.0 | 166 |
ISWB65-200IB |
30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
65 65 65 |
2900 | 7.5 | 3.0 | 114 |
ISWB65-250I |
35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22 | 3.0 | 235 |
ISWB65-250IA |
32.5 46.7 61 |
9.0 13.0 16.9 |
73 70 63 |
52 59 60 |
2900 | 18.5 | 3.0 | 205 |
ISWB65-250IB |
30 43.3 56 |
8.3 12.0 15.6 |
62 60 54 |
58 58 58 |
2900 | 15 | 3.0 | 180 |
ISWB65-315I |
35 50 65 |
9.72 13.9 18.1 |
128 125 121 |
44 54 57 |
2900 | 37 | 3.0 | 350 |
ISWB65-315IA |
32.5 46.5 60.5 |
9.0 12.9 16.8 |
112.6 110 106.4 |
43 54 57 |
2900 | 30 | 3.0 | 335 |
ISWB65-315IB |
31 44.5 58 |
8.6 12.4 16.1 |
102.5 100 98 |
53 53 53 |
2900 | 30 | 3.0 | 335 |
ISWB100-315A |
66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 103 |
65 66 67 |
2900 | 55 | 4.0 | 549 |
ISWB100-315B |
63 90 117 |
17.5 25 32.5 |
106.6 101 92 |
65 65 65 |
2900 | 45 | 4.0 | 439 |
ISWB100-315C |
58 82 107 |
16.1 22.8 29.7 |
90 85 76 |
63 63 63 |
2900 | 37 | 4.0 | 385 |
ISWB100-350 |
60 100 120 |
16.7 27.8 33.3 |
153.6 150 142 |
72 57 74 |
2900 | 90 | 4.0 | 950 |
ISWB100-350A |
61 87 113 |
16.9 24.2 31.4 |
145.6 142 134 |
75 75 75 |
2900 | 75 | 4.0 | 830 |
ISWB100-350B |
58 82 107 |
16.1 22.8 29.7 |
138.6 135 127 |
75 75 75 |
2900 | 55 | 4.0 | 600 |
ISWB100-100I |
96 160 192 |
26.7 44.4 53.3 |
14 12.5 10 |
64 73 70 |
2900 | 11 | 4.5 | 115 |
ISWB100-125I |
96 160 192 |
26.7 44.4 53.3 |
24 20 14 |
62 74 69 |
2900 | 15 | 4.5 | 168 |
ISWB100-125IA |
84 140 168 |
23.3 39 46.7 |
20 17 12 |
64 72 69 |
2900 | 11 | 4.5 | 168 |
ISWB100-160I |
96 160 192 |
26.7 44.4 53.3 |
36 32 27 |
69 79 75 |
2900 | 22 | 5.6 | 210 |
ISWB100-160IA |
84 140 168 |
23.3 39 46.7 |
32 28 23.5 |
66 76 72 |
2900 | 18.5 | 5.0 | 210 |
ISWB100-200I |
96 160 192 |
26.7 44.4 53.3 |
53 50 45 |
69 79 78 |
2900 | 37 | 5.2 | 402 |
ISWB100-200IA |
84 140 168 |
23.3 39 46.7 |
48 45 40 |
64 74 73 |
2900 | 30 | 4.5 | 395 |
ISWB100-200IB |
60 100 120 |
16.7 27.8 33.3 |
43 40 36 |
72 72 72 |
2900 | 22 | 4.5 | 360 |
ISWB100-250I |
96 160 192 |
26.7 44.4 53.3 |
83 80 72 |
65 77 74 |
2900 | 55 | 4.8 | 560 |
ISWB100-250IA |
84 140 168 |
23.3 39 46.7 |
75 72 65 |
60 72 69 |
2900 | 45 | 4.5 | 420 |
ISWB100-250IB |
60 100 120 |
16.7 27.8 33.3 |
68 65 58 |
70 70 70 |
2900 | 37 | 4.5 | 400 |
ISWB125-100 |
96 160 192 |
26.7 44.4 53.3 |
13 12.5 12 |
82 82 82 |
2900 | 11 | 4.0 | 180 |
ISWB125-100A |
86 143 172 |
23.9 39.7 47.8 |
10.4 10 9.6 |
77 77 77 |
290 | 7.5 | 4.0 | 125 |
ISWB125-125 |
96 160 192 |
26.7 44.4 53.3 |
22.6 20 17 |
80 80 80 |
2900 | 15 | 4.0 | 220 |
ISWB125-125A |
86 143 172 |
23.9 39.7 47.8 |
18 16 13.6 |
77 77 77 |
2900 | 11 | 4.0 | 210 |
ISWB125-160 |
96 160 192 |
26.7 44.4 53.3 |
36 32 28 |
78 78 &, nbsp; 78 |
2900 | 22 | 4.0 | 265 |
ISWB125-160A |
90 |
25 41750 |
31.5 28 24.5 |
76 76 76 |
2900 | 18.5 | 4.0 | 230 |
ISWB125-160B |
83 138 166 |
21.7 38.3 46.1 |
27 24 21 |
73 73 73 |
2900 | 15 | 4.0 | 215 |
ISWB125-200 |
96 160 192 |
26.7 44.4 53.3 |
55 50 46 |
77 77 77 |
2900 | 37 | 5.5 | 395 |
ISWB125-200B |
83 138 166 |
21.7 38.3 46.1 |
41.3 37.4 34.5 |
75 75 75 |
2900 | 22 | 5.5 | 320 |
ISWB125-250 |
96 160 192 |
24.744.753.3 |
87 80 73 |
75 75 75 |
2900 | 55 | 5.0 | 580 |
ISWB125-250A |
90 150 180 |
25 41.7 50 |
76 70 84 |
74 74 74 |
2900 | 45 | 5.5 | 490 |
ISWB125-250B |
83 138 166 |
21.7 38.3 46.1 |
65 60 55 |
73 73 73 |
2900 | 37 | 5.5 | 430 |
ISWB125-215 |
96 160 192 |
26.7 44.7 53.3 |
133 125 119 |
70 70 70 |
2900 | 90 | 5.0 | 790 |
ISWB125-315A |
90 150 180 |
25 41.7 50 |
117 110 104.6 |
70 70 70 |
2900 | 75 | 5.0 | 710 |
ISWB125-315B |
86 143 172 |
23.9 39.7 47.8 |
106.4 100 95.2 |
69 69 69 |
2900 | 75 | 5.0 | 705 |
ISWB125-315C |
80.5 134 161 |
22.4 37.2 44.7 |
96 88 86 |
67 67 67 |
2900 | 55 | 5.0 | 585 |
ISWB150-125 |
96 160 192 |
26.7 44.4 53.3 |
22.6 24 17 |
66 76 76 |
2900 | 11 | 4.0 | 210 |
ISWB150-125A |
90 150 180 |
25 41.7 50 |
18 16 13.6 |
77 77 77 |
2900 | 7.5 | 4.0 | 130 |
ISWB150-160 |
96 160 192 |
26.7 44.4 53.3 |
36 32 27 |
75 75 75 |
2900 | 22 | 4.0 | 270 |
ISWB150-160A |
90 150 180 |
25 41.7 50 |
32 28 23.5 |
76 76 76 |
2900 | 18.5 | 4.0 | 230 |
ISWB150-160B |
84 141 168 |
23.3 39 46.7 |
27 24 21 |
73 73 73 |
2900 | 15 | 4.0 | 220 |
ISWB150-200 |
140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 | 15 | 3.0 | 265 |
ISWB150-200A |
125 176 232.5 |
34.7 49.7 64.6 |
11 10 8.5 |
66 76 76 |
1450 | 11 | 3.0 | 244 |
ISWB150-200B |
84 440 168 |
23.3 39 46.7 |
41 38 34 |
75 75 75 |
2900 | 22 | 4.0 | 275 |
ISWB150-250 |
140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 | 18.5 | 3.0 | 300 |
ISWB150-250A |
129 184.4 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 | 15 | 3.0 | 262 |
ISWB150-250B |
117 167 217.5 |
32.5 46.4 60.4 |
15.2 14 12 |
76 76 76 |
1450 | 11 | 3.0 | 241 |
ISWB150-315 |
140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 73 |
1450 | 30 | 2.5 | 410 |
ISWB150-315A |
131 187 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
69 77 77 |
1450 | 22 | 3.5 | 335 |
ISWB150-315B |
121 173 225 |
33.5 48.1 62.5 |
25 24 21 |
76 76 76 |
1450 | 18.5 | 3.5 | 315 |
ISWB150-350 |
96 160 192 |
26.7 44.4 53.3 |
153.6 150 142.8 |
80 80 80 |
2900 | 110 | 5.5 | 970 |
ISWB150-350A |
90 150 180 |
25 41.7 50 |
145.6 142 134.8 |
70 70 70 |
2900 | 90 | 5.2 | 790 |
ISWB150-350B |
84 140 168 |
23.3 39 46.7 |
138.6 35 127.8 |
65 76 74 |
2900 | 75 | 5.5 | 705 |
ISWB150-400 |
140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 | 45 | 3.5 | 490 |
ISWB150-400A |
131 187 243 |
36.4 51.9 67.5 |
46.4 44 38.3 |
67 74 70 |
1450 | 37 | 3.5 | 454 |
ISWB150-400B |
122 174 226.5 |
33.9 48.3 62.9 |
40 38 33 |
73 73 73 |
1450 | 60 | 3.5 | 435 |
ISWB150-400C |
112 160 208 |
31.1 44.4 57.8 |
34 32 28 |
71 71 71 |
1450 | 22 | 3.5 | 365 |
ISWB150-250I |
120 200 240 |
33.3 55.6 66.7 |
87 80 72 |
65 76 74 |
2900 | 75 | 4.5 | 702 |
ISWB150-250IA |
112 187 224 |
31.1 51.9 62.2 |
76 70 63 |
64 75 73 |
2900 | 55 | 4.5 | 451 |
ISWB150-250IB |
104 173 208 |
28.9 48.1 57.8 |
65 60 54 |
63 74 72 |
2900 | 45 | 4.5 | 460 |
ISWB150-315I |
120 200 240 |
33.3 55.6 66.7 |
133 125 120 |
58 72 75 |
2900 | 110 | 4.5 | 980 |
ISWB150-315IA |
112 187 224 |
31.1 51.9 62.2 |
116 110 105 |
57 72 74 |
2900 | 90 | 4.5 | 800 |
ISWB200-315IB |
104 173 208 |
28.9 48.1 57.8 |
100 95 91 |
55 70 72 |
2900 | 75 | 4.5 | 724 |
ISWB200-200 |
140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 | 15 | 3.0 | 265 |
ISWB200-200A |
125 179 232.5 |
34.7 49.7 64.6 |
11 10 8.5 |
66 76 76 |
1450 | 11 | 3.0 | 244 |
ISWB200-250 |
140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 | 18.5 | 3.0 | 305 |
ISWB200-250A |
129 184.4 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 | 15 | 3.0 | 267 |
ISWB200-250B |
117 167 217.5 |
32.5 46.4 60.4 |
15.2 14 12 |
76 76 76 |
1450 | 11 | 3.0 | 246 |
ISWB200-315 |
140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 78 |
1450 | 30 | 3.5 | 417 |
ISWB200-315A |
131 189 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
69 77 77 |
1450 | 22 | 3.5 | 342 |
ISWB200-315B |
121 173 225 |
33.6 48.1 62.5 |
25 24 21 |
76 76 76 |
1450 | 18.5 | 3.5 | 322 |
ISWB200-400 |
140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 | 45 | 3.5 | 498 |
ISWB200-400A |
131 187 243 |
36.4 51.9 67.5 |
46.6 44 38.3 |
67 74 70 |
1450 | 37 | 3.5 | 462 |
ISWB200-400B |
122 174 226.5 |
33.9 48.6 62.9 |
44 38 33 |
73 73 73 |
1450 | 30 | 3.5 | 443 |
ISWB200-400C |
112 160 208 |
31.3 44.4 57.8 |
34 32 28 |
71 71 71 |
1450 | 22 | 3.5 | 373 |
ISWB200-200I |
280 400 520 |
77.8 111.1 144 |
13.4 12.5 10.5 |
70 80 79 |
1450 | 22 | 4.0 | 382 |
ISWB200-200IA |
250 358 465 |
69.4 99.4 129.2 |
10.7 10 8.5 |
68 78 77 |
1450 | 18.5 | 4.0 | 346 |
ISWB200-250I |
280 400 520 |
77.8 111.4 144 |
22.2 20 14 |
75 80 72 |
1450 | 30 | 4.0 | 475 |
ISWB200-250IA |
250 358 465 |
69.4 99.4 129.2 |
18 16 11.2 |
73 78 70 |
1450 | 22 | 4.0 | 405 |
ISWB200-250IB |
226 322 419 |
62.8 89.4 116.4 |
14.4 13 7.3 |
70 75 67 |
1450 | 18.5 | 4.0 | 387 |
ISWB200-315I |
280 440 520 |
77.8 111.4 144 |
36 32 26 |
73 80 75 |
1450 | 55 | 4.0 | 675 |
ISWB200-315IA |
262 374 482 |
72.8 103.9 135 |
31.5 28 23 |
72 79 74 |
1450 | 45 | 4.0 | 560 |
ISWB200-315IB |
242 346 450 |
67.2 96.1 125 |
27 24 19.5 |
78 78 78 |
1450 | 37 | 4.0 | 535 |
ISWB200-400I |
280 400 520 |
77.8 111.4 144 |
54.5 50 39 |
75 81 77 |
1450 | 75 | 4.0 | 830 |
ISWB200-400IA |
262 374 486 |
72.8 103.9 135 |
48 44 34 |
80 80 80 |
1450 | 75 | 4.0 | 830 |
ISWB200-400IB |
242 346 450 |
67.2 96.1 125 |
41.4 38 29.6 |
78 78 78 |
1450 | 55 | 5.0 | 685 |
ISWB200-400IC |
224 320 416 |
62.2 88.9 115.6 |
34.9 32 25 |
76 76 76 |
1450 | 45 | 5.0 | 580 |
ISWB250-250 |
350 550 650 |
97.2 152.8 180.5 |
22 20 16 |
78 82 81 |
1450 | 45 | 5.0 | 620 |
ISWB250-250A |
300 500 600 |
83.3 139 166.7 |
18.3 17 14 |
76 80 80 |
1450 | 37 | 5.0 | 550 |
ISWB250-235 |
300 500 600 |
83.3 139 166.7 |
14 12.5 11 |
73 78 70 |
1450 | 22 | 4.5 | 410 |
ISWB250-300 |
300 500 600 |
83.3 139 166.7 |
22 20 16 |
78 78 78 |
1450 | 37 | 4.5 | 550 |
ISWB250-315 |
350 550 650 |
97.2 152.8 180.5 |
34 32 28 |
76 80 79 |
1450 | 75 | 5.5 | 890 |
ISWB250-315A |
300 500 600 |
83.3 139 166.7 |
29.5 28 24 |
74 78 77 |
1450 | 55 | 5.5 | 690 |
ISWB250-315B |
260 450 520 |
72.2 125 144.4 |
25 24 20 |
70 74 72 |
1450 | 45 | 5.5 | 620 |
ISWB250-400 |
300 500 600 |
83.3 139 166.7 |
54.5 50 39 |
72 72 72 |
1480 | 90 | 4.5 | 1530 |
ISWB300-235 |
480 720 900 |
133.3 200 250 |
20 18 15.5 |
77 81 74 |
970 | 55 | 5.0 | 1120 |
ISWB300-235A |
438 607 821 |
121.7 182.5 228.1 |
16.5 15 13 |
75 79 72 |
970 | 45 | 5.0 | 1030 |
ISWB300-235B |
400 600 750 |
111.1 167.0 208.3 |
14 12.5 11 |
73 77 70 |
970 | 37 | 5.0 | 890 |
ISWB300-300 |
480 720 900 |
133.3 200 250 |
31 28 25 |
77 81 77 |
970 | 75 | 5.0 | 1350 |
ISWB300-300A |
444 666 833 |
123.3 185 231.4 |
26.5 24 21.5 |
76 80 76 |
970 | 75 | 5.0 | 1350 |
ISWB300-300B |
415 623 779 |
115.3 173.1 261.4 |
23 21 18.5 |
79 79 79 |
970 | 55 | 5.0 | 1170 |
ISWB300-380 |
480 720 900 |
133.3 200 250 |
48 44 34 |
84 84 84 |
970 | 132 | 5.0 | 1900 |
ISWB300-380A |
444 666 833 |
123.3 185 231.4 |
41.4 38 30 |
80 80 80 |
970 | 110 | 5.0 | 1700 |
ISWB300-380B |
409 614 767 |
113.6 170.6 213.1 |
35 32 25 |
78 78 78 |
970 | 90 | 5.0 | 1530 |
ISWB300-235I |
718 1080 1345 |
199.4 300 373.6 |
44.6 40 34.6 |
82 82 82 |
1450 | 160 | 5.5 | 1680 |
ISWB300-235IA |
642 965 1203 |
178.3 268.1 334.2 |
35.7 32 27.7 |
80 80 80 |
1450 | 132 | 5.5 | 1440 |
ISWB200-315I |
280 440 520 |
77.8 111.4 144 |
36 32 26 |
73 80 75 |
1450 | 55 | 4.0 | 675 |
ISWB200-315IA |
262 374 482 |
72.8 103.9 135 |
31.5 28 23 |
72 79 74 |
1450 | 45 | 4.0 | 560 |
ISWB200-315IB |
242 346 450 |
67.2 96.1 125 |
27 24 19.5 |
78 78 78 |
1450 | 37 | 4.0 | 535 |
ISWB200-400I |
280 400 520 |
77.8 111.4 144 , , |
54.5 50 39 |
75 81 77 |
1450 | 75 | 4.0 | 830 |
ISWB200-400IA |
262 374 486 |
72.8 103.9 135 |
48 44 34 |
80 80 80 |
1450 | 75 | 4.0 | 830 |
ISWB200-400IB |
242 346 450 |
67.2 96.1 125 |
41.4 38 29.6 |
78 78 78 |
1450 | 55 | 5.0 | 685 |
ISWB200-400IC |
224 320 416 |
62.2 88.9 115.6 |
34.9 32 25 |
76 76 76 |
1450 | 45 | 5.0 | 580 |
ISWB250-250 |
350 550 650 |
97.2 152.8 180.5 |
22 20 16 |
78 82 81 |
1450 | 45 | 5.0 | 620 |
ISWB250-250A |
300 500 600 |
83.3 139 166.7 |
18.3 17 14 |
76 80 80 |
1450 | 37 | 5.0 | 550 |
ISWB250-235 |
300 500 600 |
83.3 139 166.7 |
14 12.5 11 |
73 78 70 |
1480 | 22 | 4.5 | 410 |
ISWB250-300 |
300 500 600 |
83.3 139 166.7 |
22 20 16 |
7878 78 |
1480 | 37 | 4.5 | 550 |
ISWB250-315 |
350 550 650 |
97.2 152.8 180.5 |
34 32 28 |
76 80 79 |
1450 | 75 | 5.5 | 890 |
ISWB250-315A |
300 500 600 |
83.3 139 166.7 |
29.5 28 24 |
74 78 77 |
1450 | 55 | 5.5 | 690 |
ISWB250-315B |
260 450 520 |
72.2 125 144.4 |
25 24 20 |
70 74 72 |
1450 | 45 | 5.5 | 620 |
ISWB250-400 |
300 500 600 |
83.3 139 166.7 |
54.5 50 39 |
72 72 72 |
1480 | 90 | 4.5 | 1530 |
ISWB250-235 |
480 720 900 |
133.3 200 250 |
20 18 15.5 |
77 81 74 |
970 | 55 | 5.0 | 1120 |
ISWB250-235A |
438 607 821 |
121.7 182.5 228.1 |
16.5 15 13 |
75 79 72 |
970 | 45 | 5.0 | 1030 |
ISWB250-235B |
400 600 750 |
111.1 167.0 208.3 |
14 12.5 11 |
73 77 70 |
970 | 37 | 5.0 | 890 |
ISWB300-300 |
480 720 900 |
133.3 200 250 |
31 28 25 |
77 81 77 |
970 | 75 | 5.0 | 1350 |
ISWB300-300A |
444 666 833 |
123.3 185 231.4 |
26.5 24 21.5 |
76 80 76 |
970 | 75 | 5.0 | 1350 |
ISWB300-300B |
415 623 779 |
115.3 173.1 261.4 |
23 21 18.5 |
79 79 79 |
970 | 55 | 5.0 | 1170 |
ISWB300-380 |
480 720 900 |
133.3 200 250 |
48 44 34 |
84 84 84 |
970 | 132 | 5.0 | 1900 |
ISWB300-380A |
444 666 833 |
123.3 185 231.4 |
41.4 38 30 |
80 80 80 |
970 | 110 | 5.0 | 1700 |
ISWB300-380B |
409 614 767 |
113.6 170.6 213.1 |
35 32 25 |
78 78 78 |
970 | 90 | 5.0 | 1530 |
ISWB300-235I |
718 1080 1345 |
199.4 300 373.6 |
44.6 40 34.6 |
82 82 82 |
970 | 160 | 5.5 | 1680 |
ISWB300-235IA |
642 965 1203 |
178.3 268.1 334.2 |
35.7 32 27.7 |
80 80 80 |
970 | 132 | 5.5 | 1440 |
相關文章
相關產品
